# Konica KM HS1000 Printhead

Konica KM HS1000Printhead

Description:

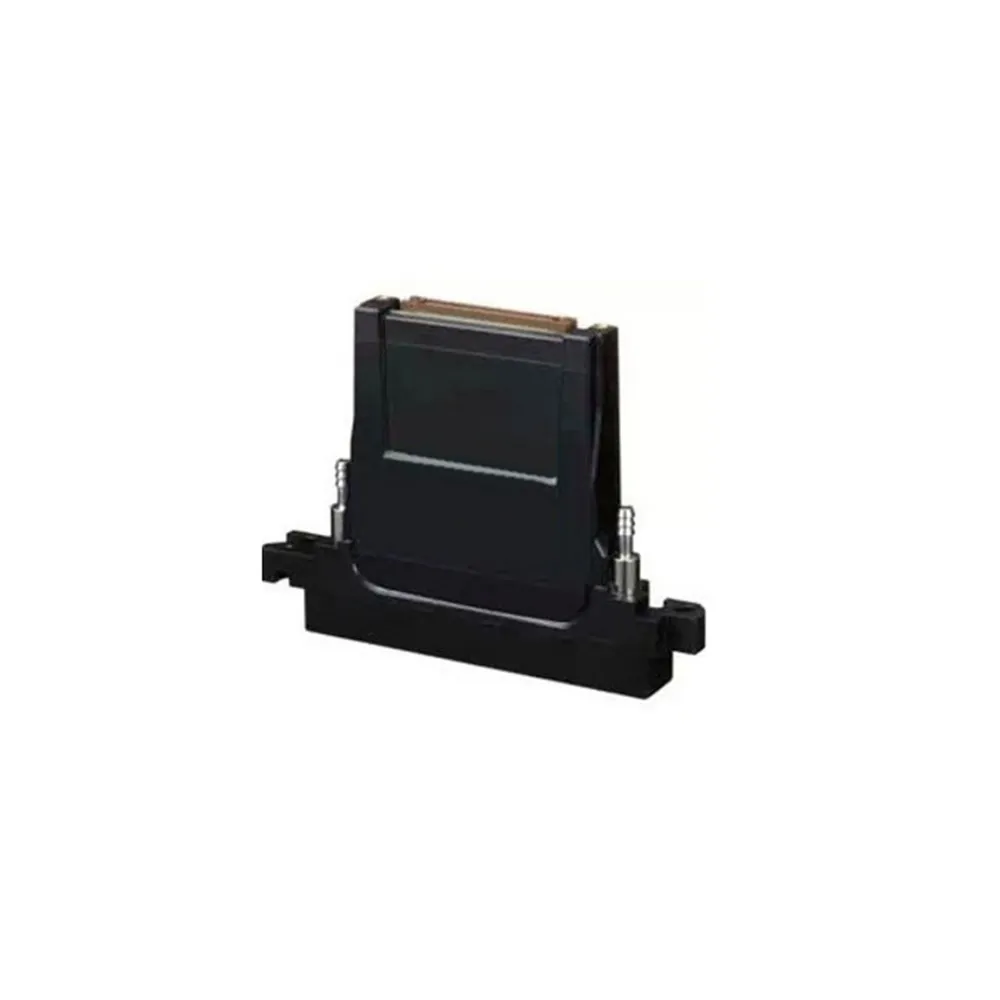

The Konica Minolta KM HS1000 printhead is a piezo on-demand printhead featuring an all-nozzle Independent drive system with a multi-line structure. In contrast with the existing 3-cycle system drive, an independent drive system that enables simultaneous emission from all 1024 nozzles has been adopted. The high-density structure featuring 4 lines of 256 nozzles aligned with high precision enhances positioning accuracy to realize high-definition print quality.
This printhead can be used as a replacement of the Konica Minolta KM1024i LHE.
We recommend to change the head cables when installing a new printhead.

Printer Compatibility:
Agfa Anapurna (100, H2500iLED, M2050i, M2500i, M3200i )
Allwin (S320UV, S500UV, UVT 2030, UVT 2512, UVT+ 2030, UVT+ 2512)
Docan H1000
Flora HJ 5000UV
Human Digital Technology M-JET
IIJ ColourPrint-72
JHF Vista (R3300, R6000, V300UV, V500UV)
Optimum Digital KR Hybrid UV
Skyjet (FT2512i, FT3020i)
Taimes T50UV
Yicong YD2512-KD
Flora (PP 2512UV, XTRA 330)

Specifications:
• Technology: Piezo Drop On-Demand
• Native resolution: 360npi (90npi x 4lines)
• Cal. Droplet Size: 30 pico litre
• Grayscale maximum drop count: 8 drops
• Total nozzles: 1024 (256nozzles x 4lines)
• Print width: 72 mm
• Firing Frequency: 27 Khz
• Drive Voltage: 13+-3V
• Ink compatibility: UV (White)
• Dimensions: W131 mm x D17 mm x H94 mm
• Weight: 150g
