Original Mimaki JV33 _ JV5 Printhead with Memory

# Original Mimaki JV33 _ JV5 Printhead with Memory B

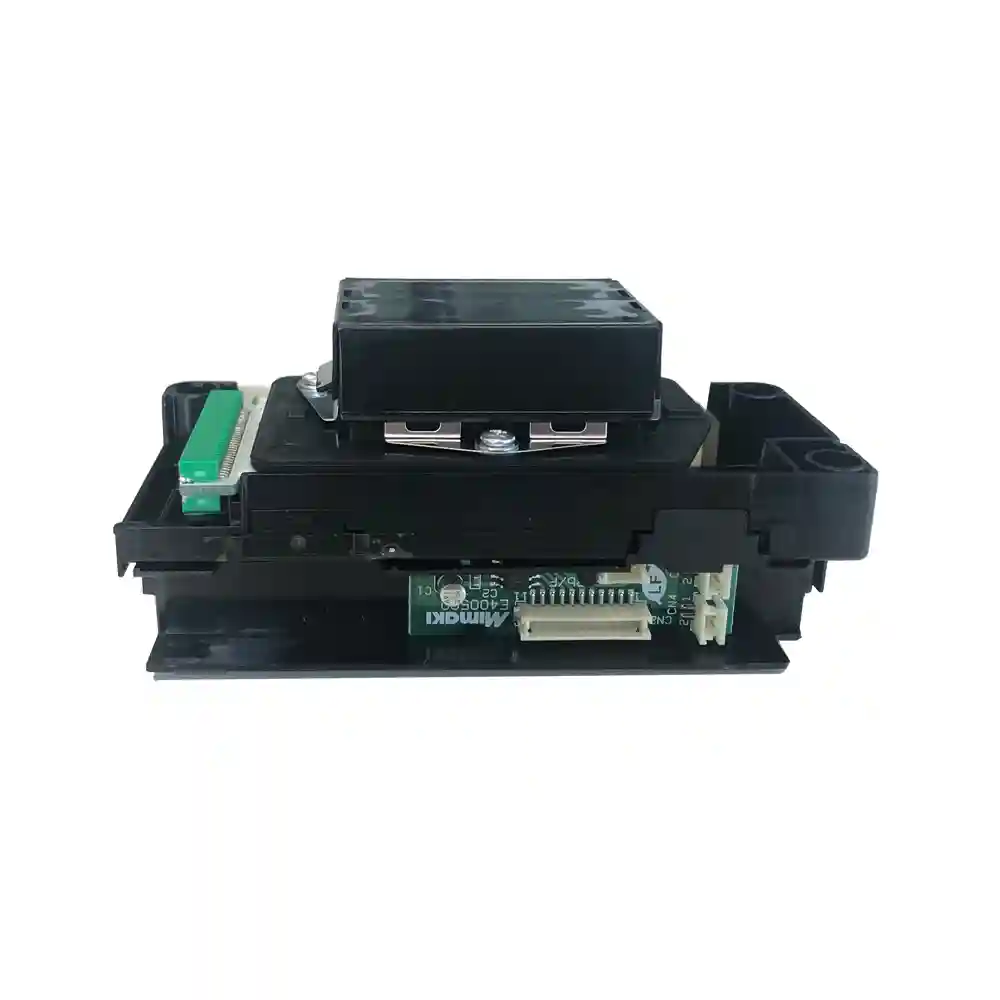

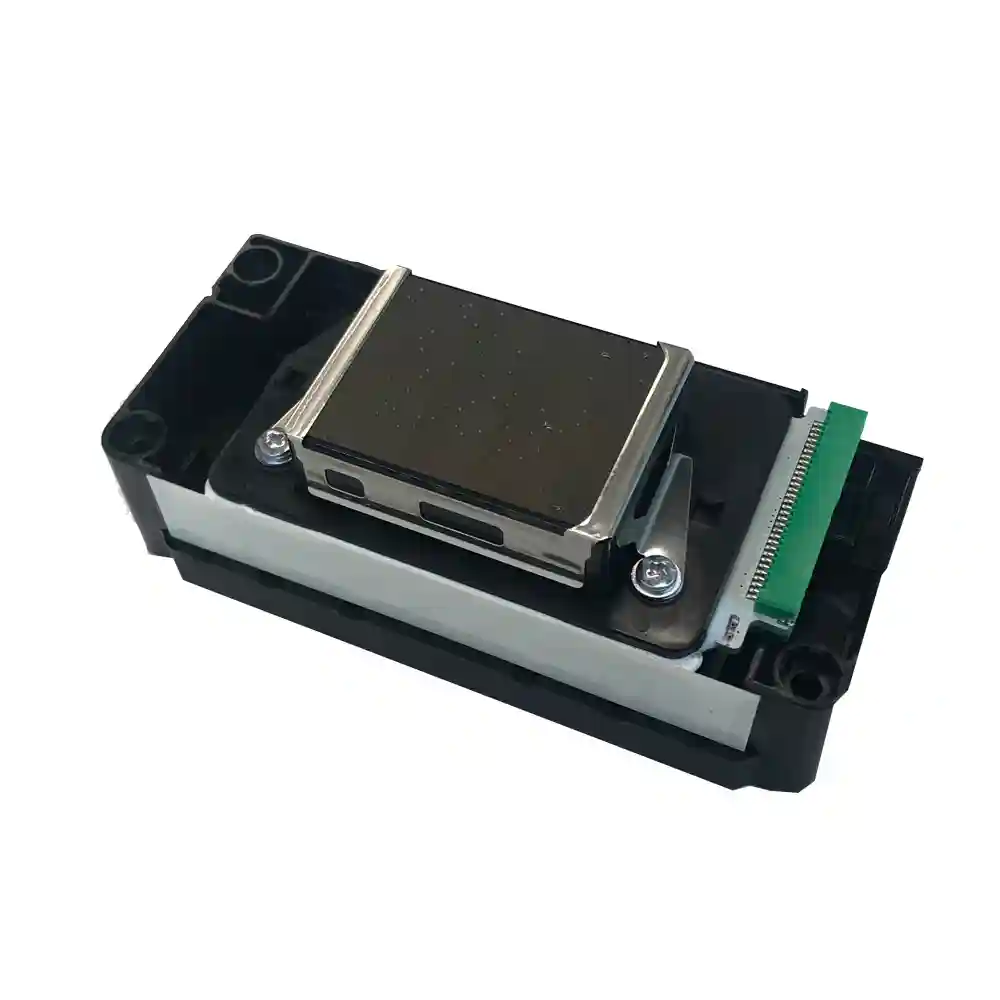

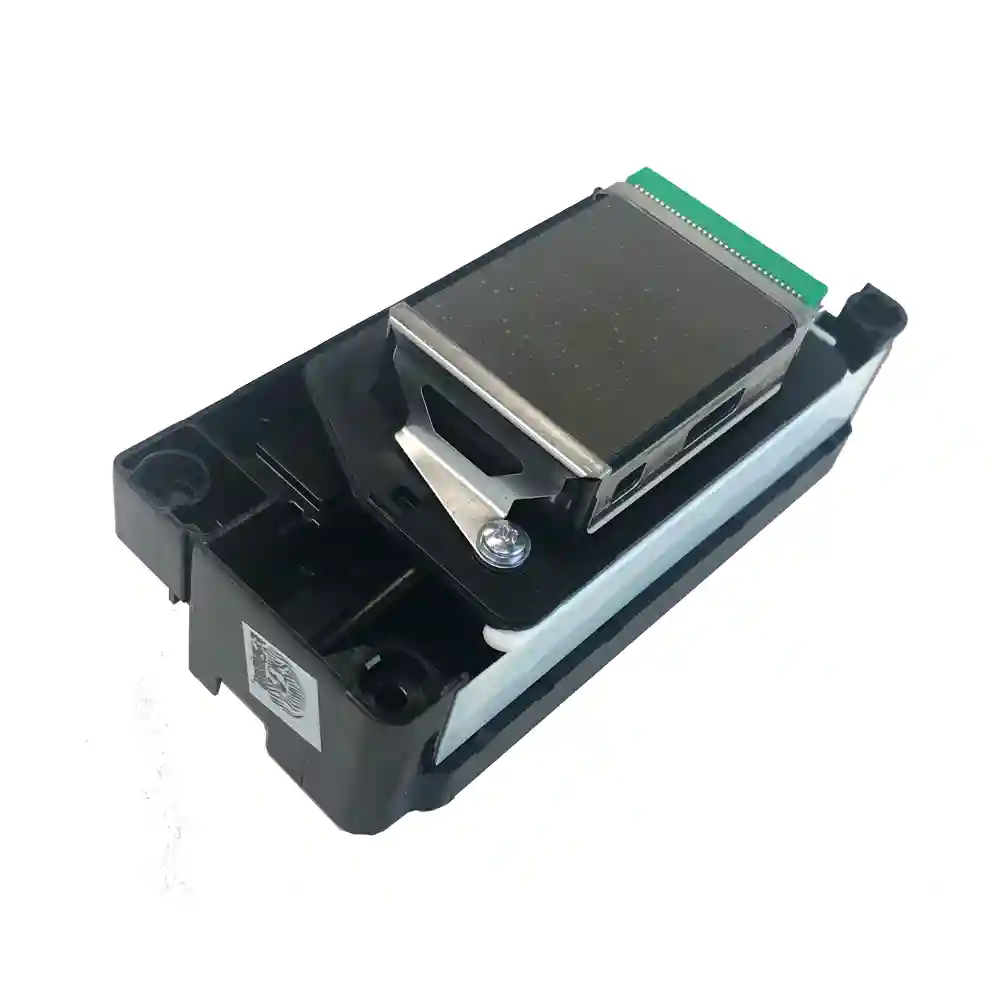

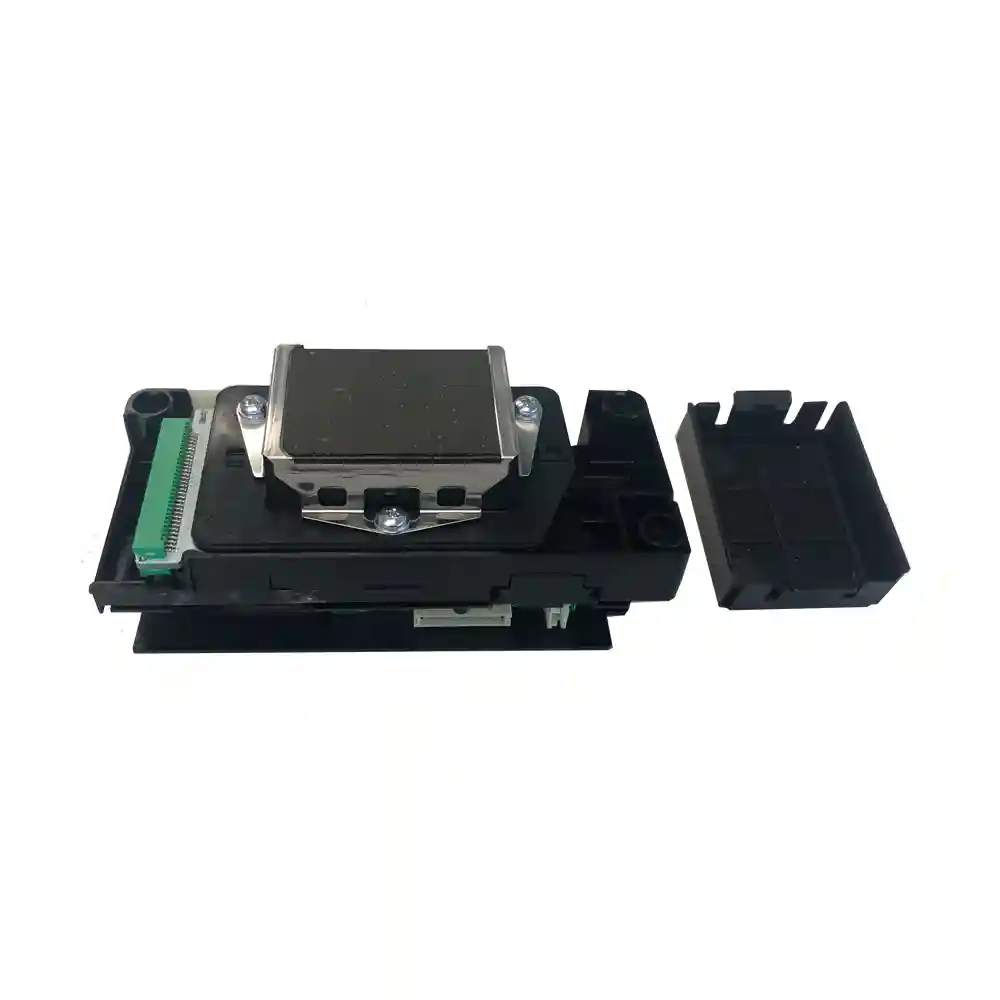

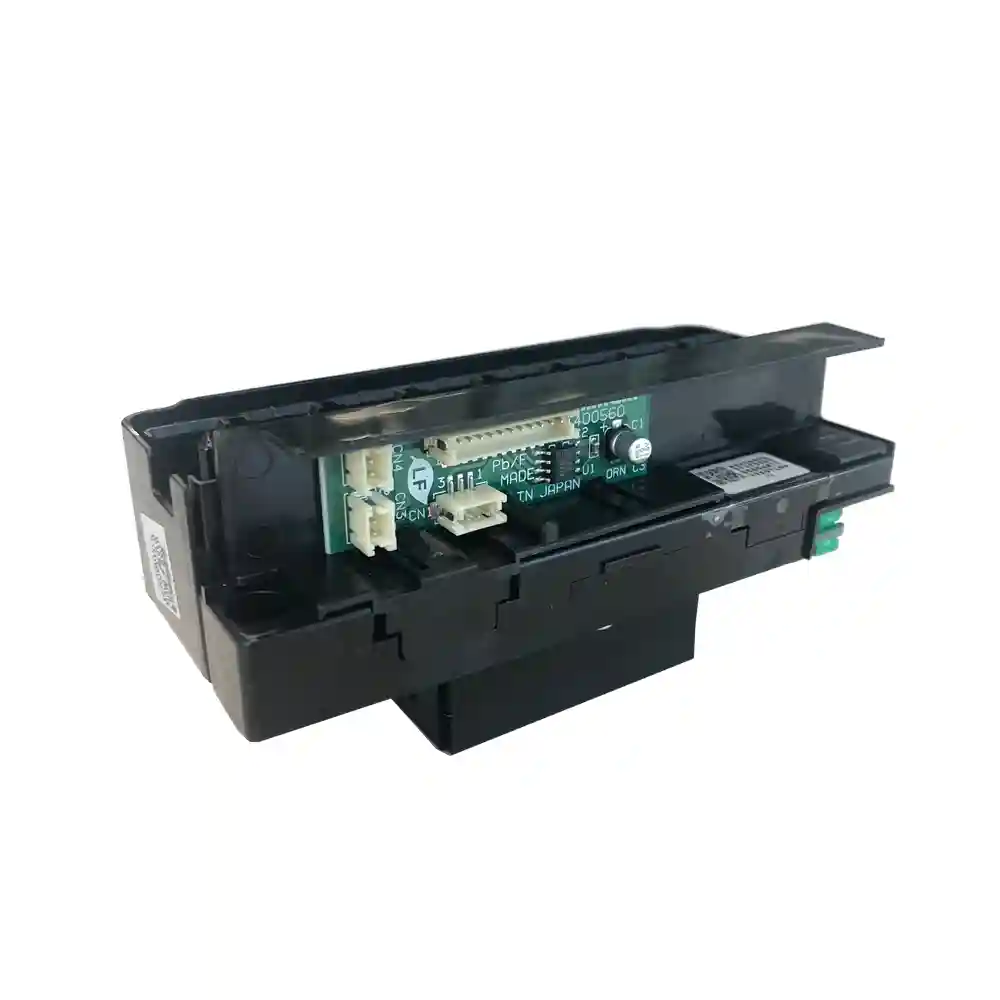

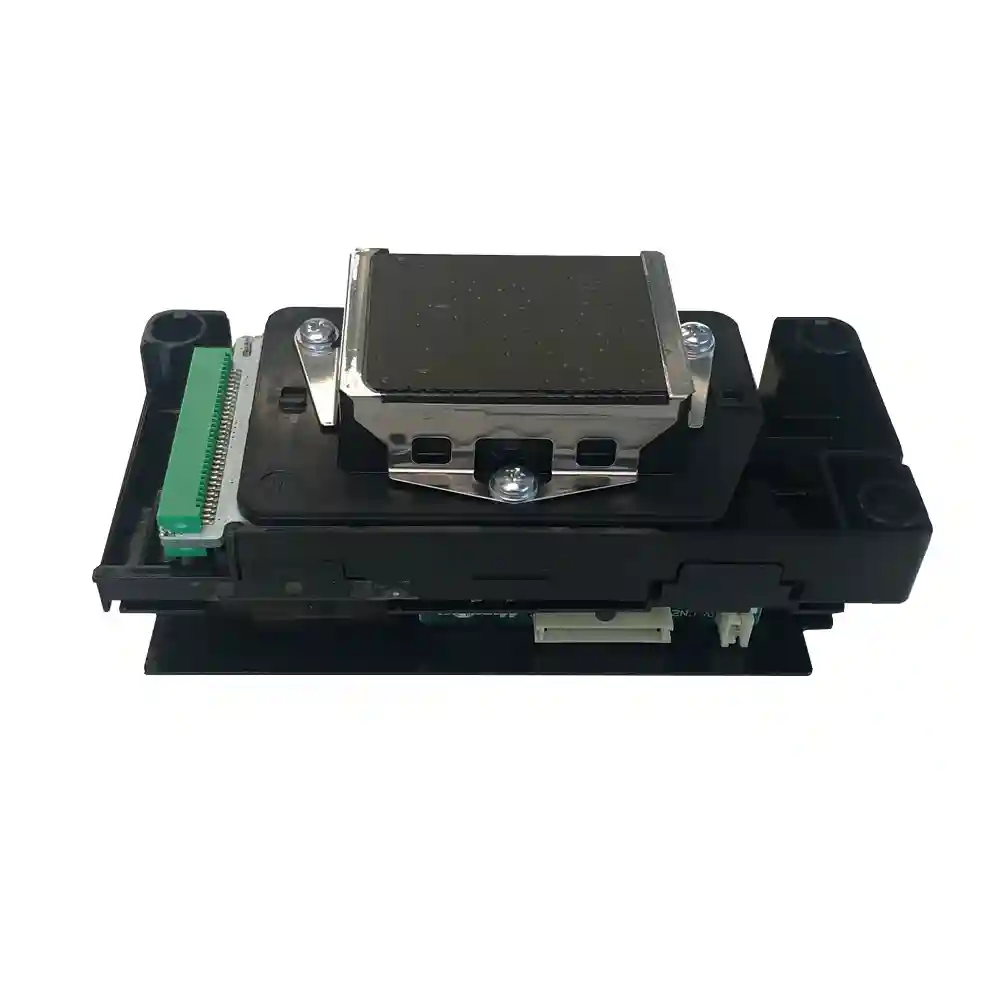

Original Mimaki JV33 / JV5Printheadwith Memory Board – M007947
Description:
Mimaki JV33/JV5 (Dx5) printhead, model MP-M007947, adopts micro-piezoelectric technology, Suitable for Mimaki CJV30-100, CJV30-100BS, CJV30-130BS,CJV30-160 and so on.
This generation of printheads allows fast speed, high resolution printing with eco-solvent and mild solvent inks. The original and complete Mimaki JV33/JV5 printhead is delivered with the Head ID and the Head Memory Board.
To be used with:Mimaki JV33-130 / JV33-160 / JV33-260 / JV33-130BS / JV33-160BS / JV33-260BS / JV5-130S / JV5-160S / JV5-260S / JV5-320DS / JV5-320S / CJV30-100 / CJV30-130 / CJV30-160 / CJV30-60 / CJV30-100BS / CJV30-130BS / CJV30-160BS / CJV30-60BS / TS5-1600AMF / TPC-1000 / TS3-1600
Remarks:Original
Part No.: M007947
Specifications:

Technology Micro-Piezo
Native resolution 1440 dpi
Min. Droplet Size 1,5 pico litre
Max. Droplet Size 21 pico litre
Tot. Amount of Nozzles 1440 (8 lines x 180 nozzles)
Firing Frequency 8 kHz
Ink Compatibility eco-solvent and mild solvent

It is highly recommended to replace the head cables together with a new printhead.
