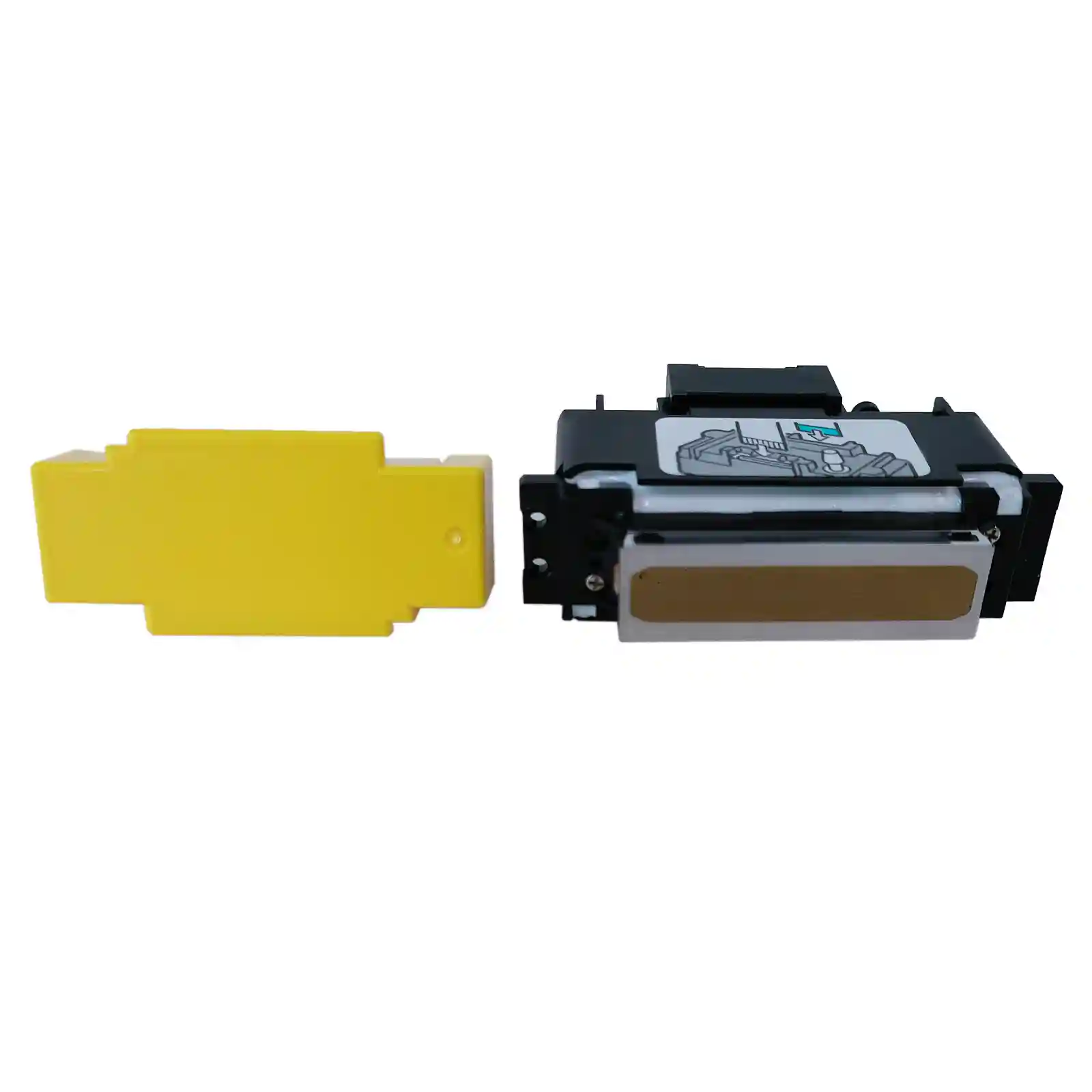

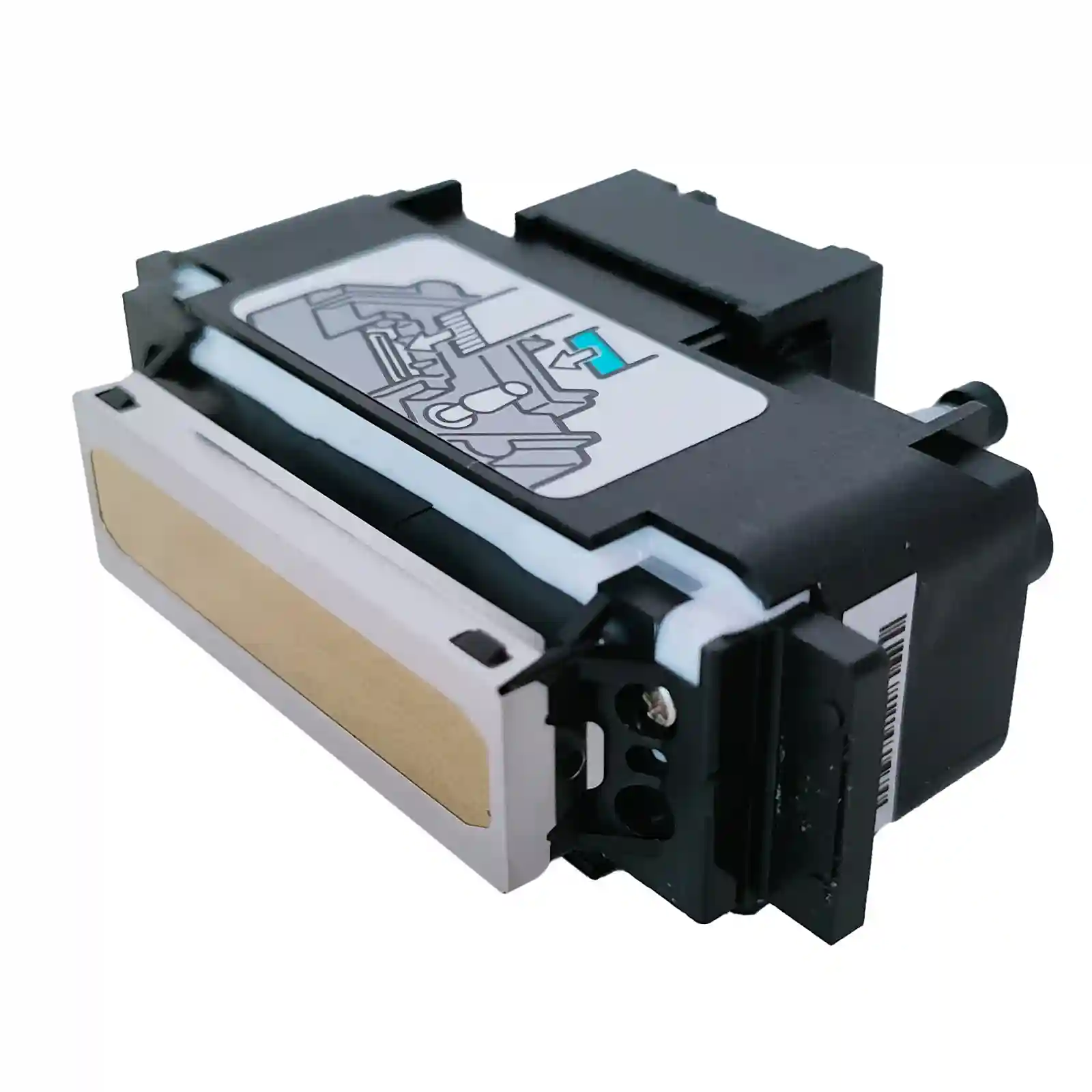

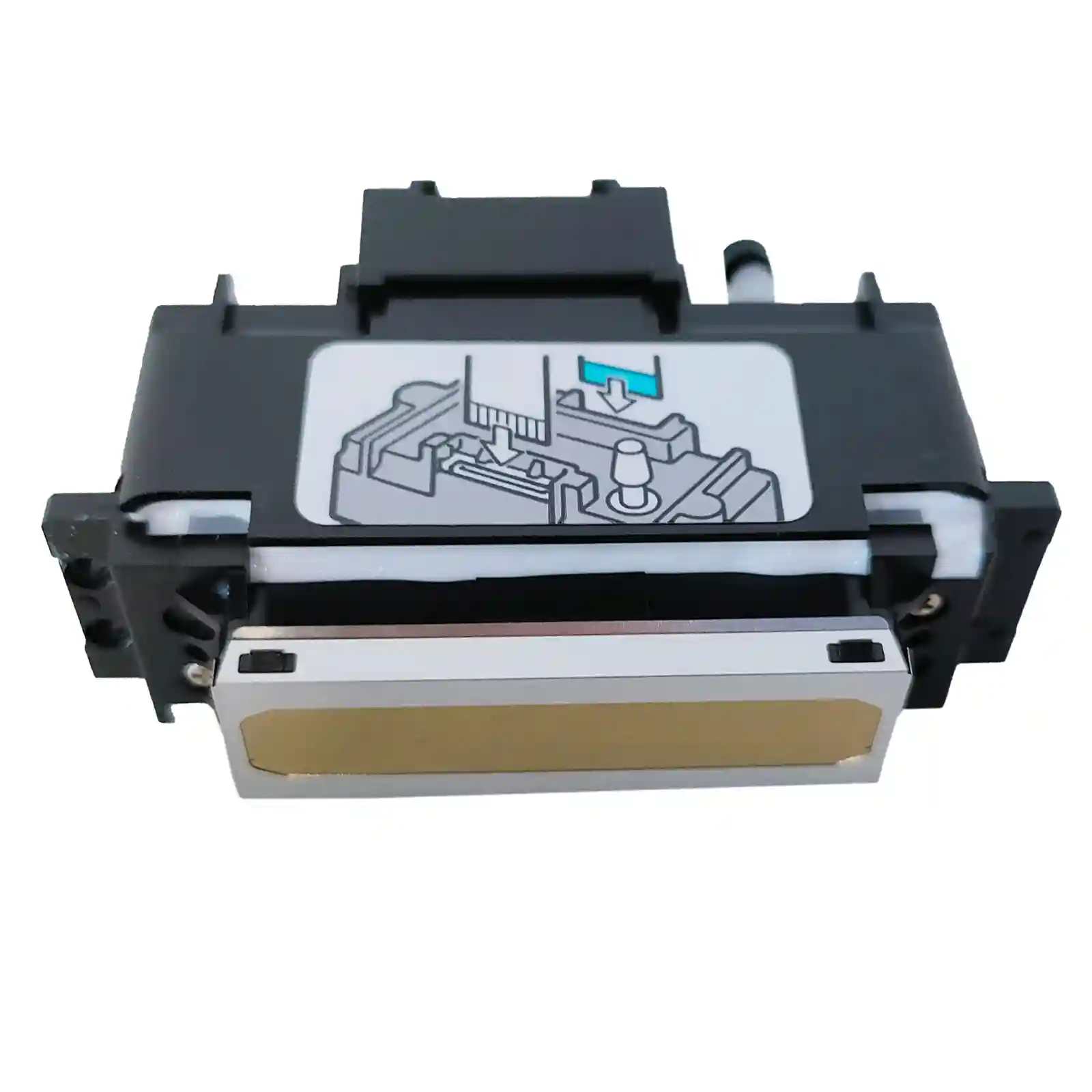

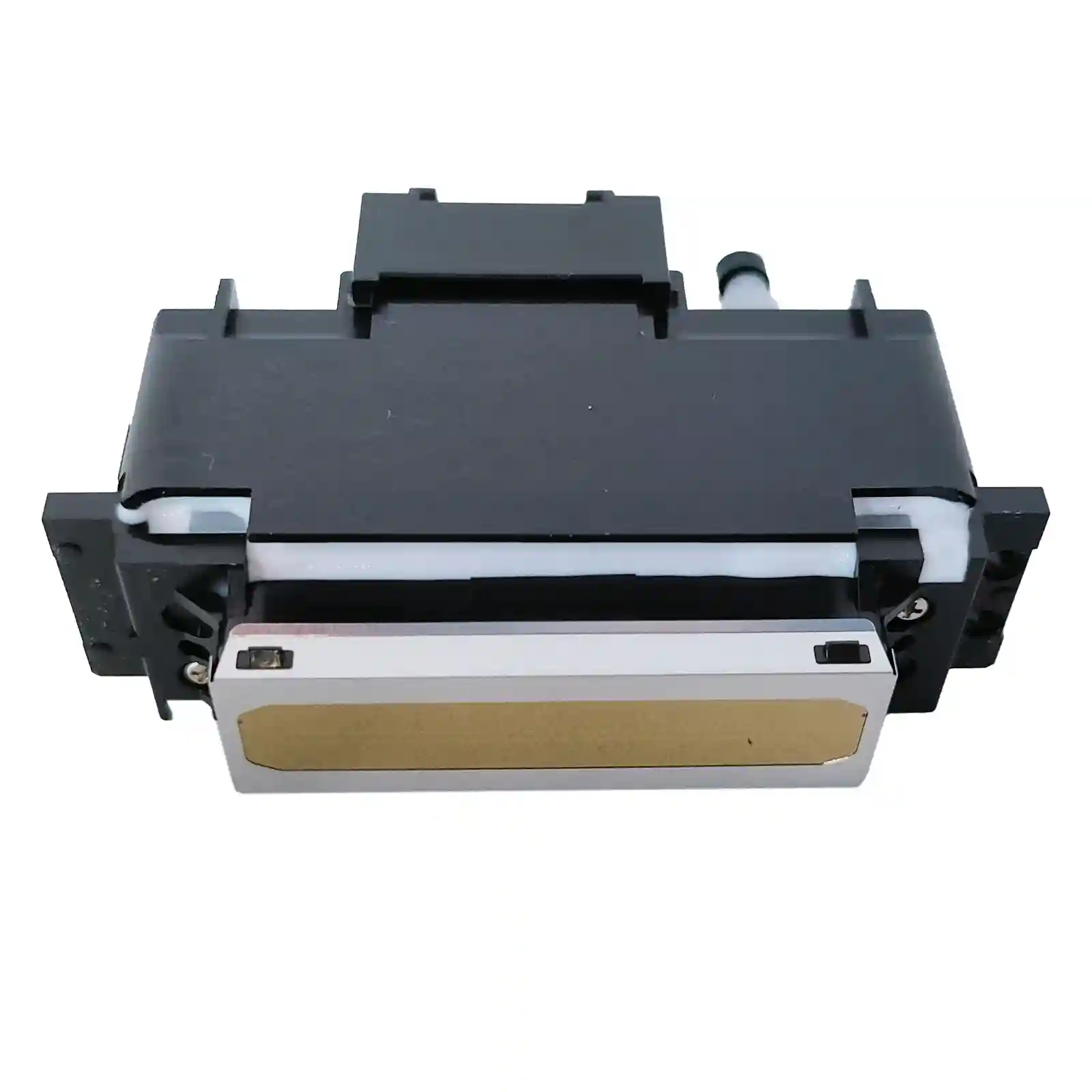

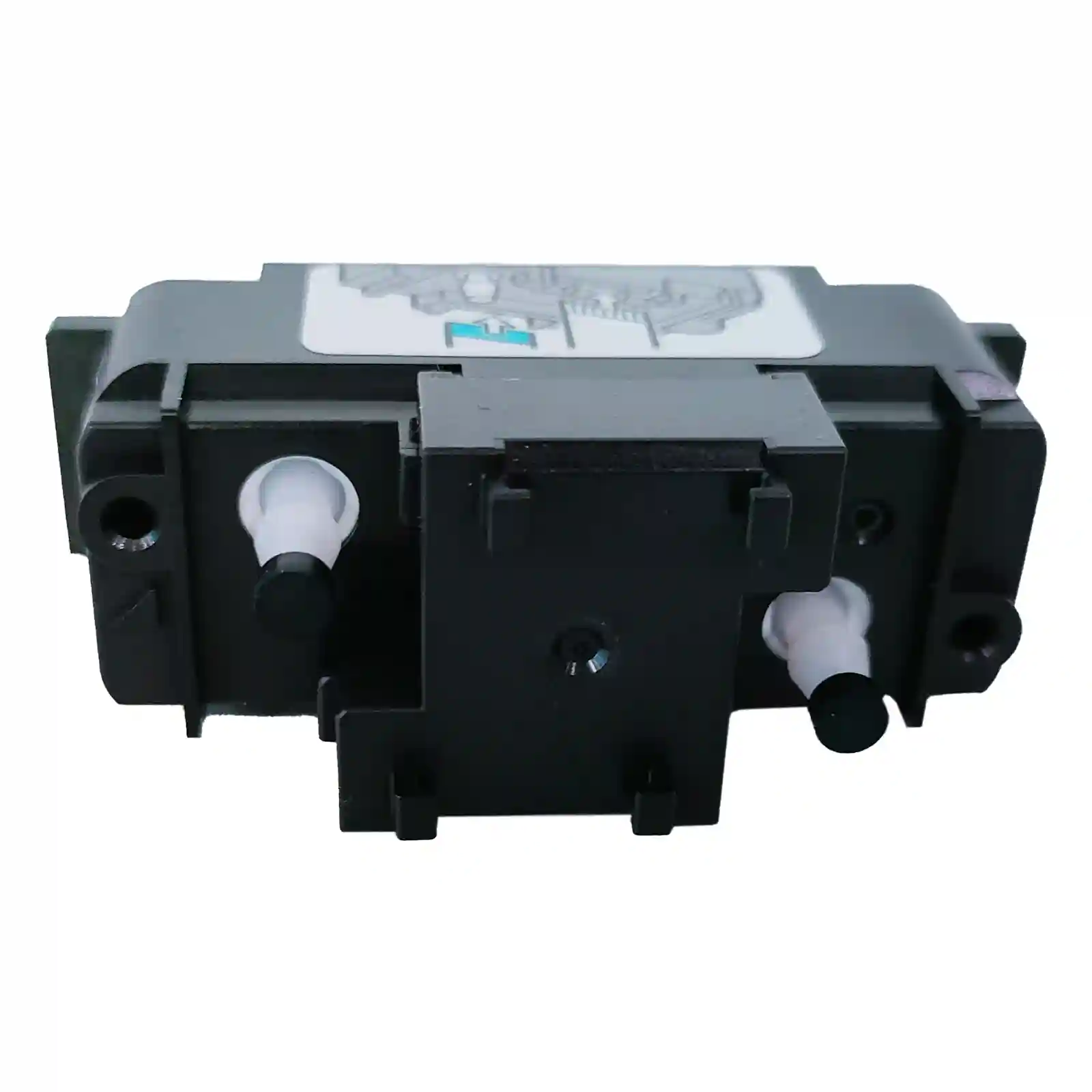

# Ricoh GH2220 Printhead

Ricoh GH2220Printhead
Features:
Expanding industrial opportunities with new precision fabricated silicon range.
The GHPrint Headis a result of over 10 years of Ricoh research and manufacturing optimization and is now made available for OEMs to incorporate in their aqueous andSolvent Inkbased printer offerings.

Supports water and solvent based inks.
In addition to water-based inks, these print heads support solvent inks as well.

Multi-drop technology enables gray scale expressions.
These print heads support multi-drop-based droplet control for instantly consolidating the ink that is discharged from the nozzle at high speeds before it reaches the surface of the medium. Droplet volume control enables full control of ink discharge from small to large droplets.

Specifications
Method Piston pusher with metallic diaphragm plate
Print Width 32.4 mm(1.28″)
Number of nozzles 384
Nozzle spacing (Within a row) 1/150″(0.1693 mm)/row
Nozzle spacing (Row to row distance) 0.931 mm
Compatible ink Aqueous, Solvent
Total printhead dimensions 61.8(W) × 40.5(D) × 23.3(H) mm (2.43″ × 1.59″ × 0.92″)
Weight 36g
Ink colors supported 2 colors
Temperature around the head 10-32ºC
Temperature control No heater or thermistor
Life 30 billion actuations per nozzle
Jetting frequency Binary mode : 30kHz / Grey-scale mode : 24kHz
Drop volume Binary mode : 3-5pl / Grey-scale mode : 21±2pl*depending on the ink
Viscosity range 6-16 mPa•s
Surface tension 25±1mN/m
Maximum gray scale 4 levels * depends on ink characteristics
Alignment mechanism Frame-abutting
