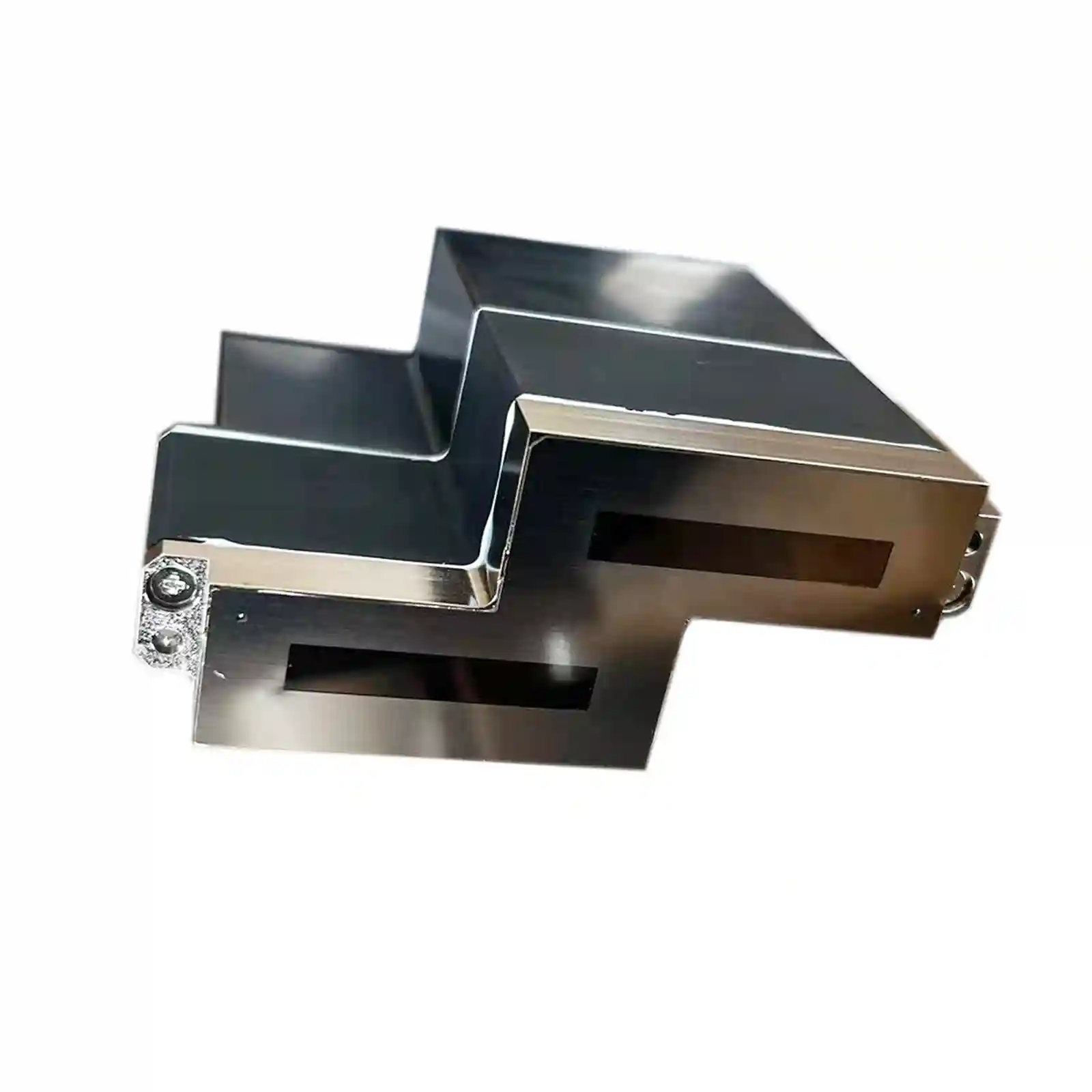

Ricoh TH6310F Printhead

# Ricoh TH6310F Printhead, (1 color, 5PL) – J388-00

RICOH TH6310
Method Thin-film piezoelectric transducer with bend mode
Print Width 66.7mm
Number of nozzles 1,600 (8 × 100 channels × 2 Modules), staggered(Net: 1,576)
Nozzle Resolution 600npi
Nozzle spacing(Row to row distance) A: 0.677mm (8 pixels of 600npi)B: 20.909mm (494 pixels of 600npi)
Compatible ink Aqueous, UV, Solvent, Others.
TotalPrintheaddimensions W : 104.6mmD : 44.9mmH : 104mm
Weight 374g
Max.number of color inks 1 color
Operating temperature range 140℉ (60℃)
Temperature control Integrated thermistor, heater
Firing frequency 80kHz(2 levels)60kHz(3 levels)40kHz(4 levels)
Grayscale 4 levels
Drop volume 5pL(Single drop)5 ～ 18pL(Multi drop)
Viscosity range 5.5mPa・s
Surface tension 31.6±5mN/m
Ink circulation structure 〇
Separately sold parts TH6310F dedicated cable
