Seiko U508GS _ 12PL PrintHead – IRH2533U-2410

# Seiko U508GS _ 12PL PrintHead – IRH2533U-2410

Seiko U508GS / 12PLPrinthead- IRH2533U-2410
Description:

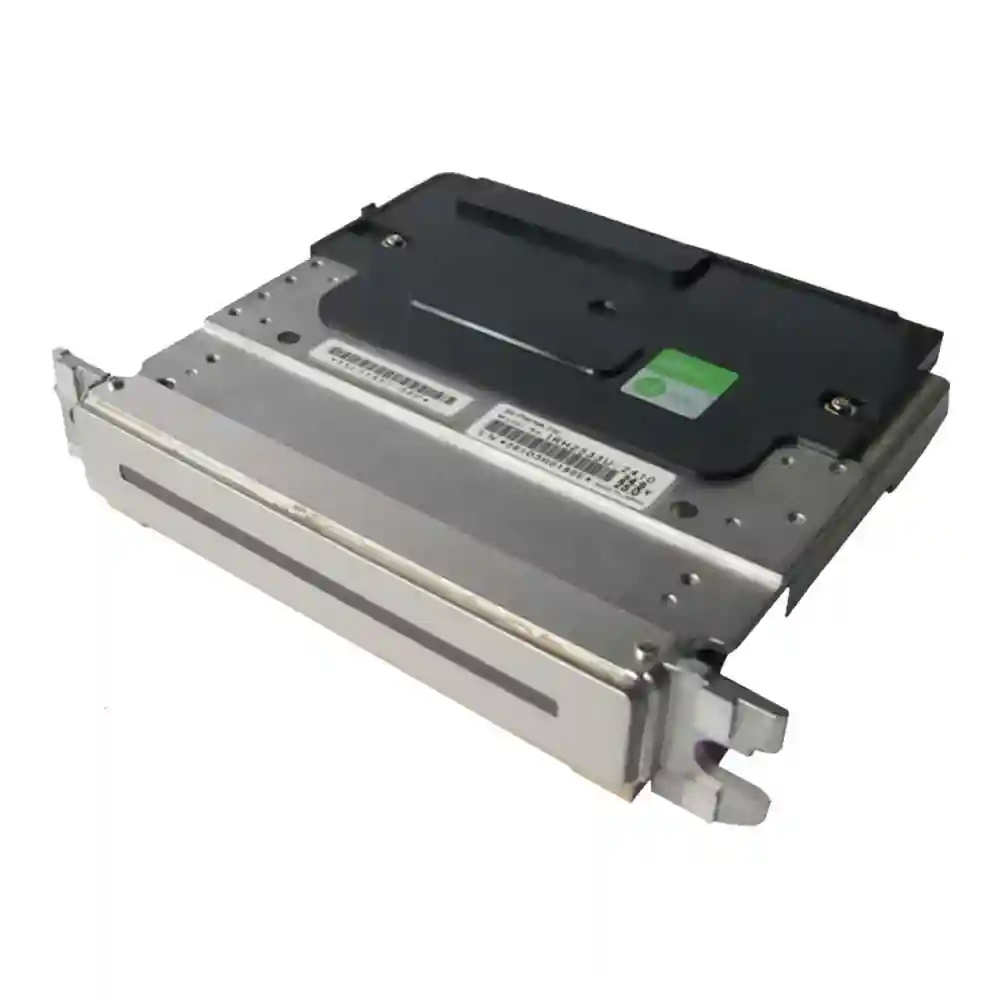

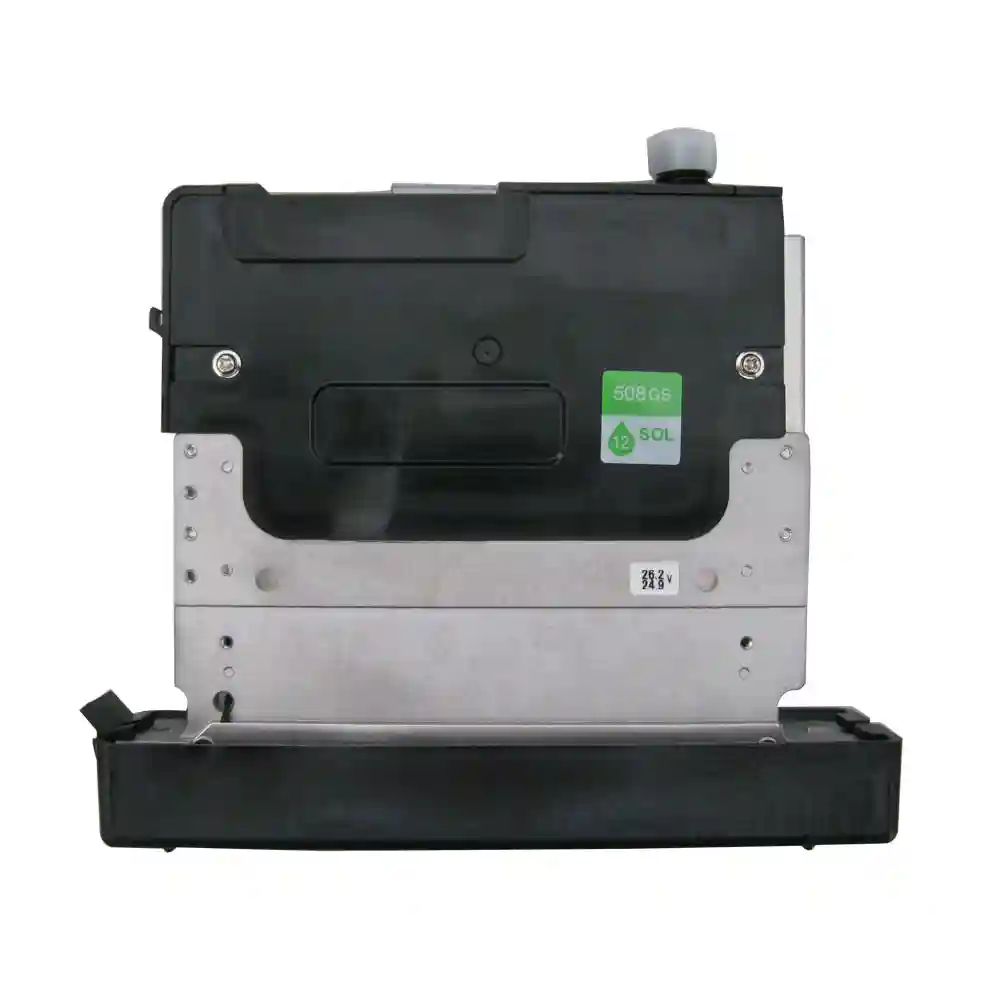

This Seiko 508GS 12PL solvent / UV printhead is suitable for a range of printers, including Infiniti printers. The Seiko 508GS is a state of the art grayscalePrint Headwith a built-in damper assembly and a nozzle guard. This is the original Seiko part (number IRH2533U-2410). We recommend to change the head cables when installing a new printhead.
To be used with:
Infiniti challenger FY-3266T / FY-306T / FY-3208T / FY-3286T / FY-3286J / FY-3208GS
Crystek X5300
CrystalJet 6000 series
Kerajet K700
Leyenda 1800T3 / 3200F3
Nuocai NC-SPT2531
Forni HS1804
Icontek TW-1800J3 / TW-3308HG / TW-3200F3 / TW-3308MG
OraJet J18
Remarks:Original

Specifications

Model PRH-SPT-007
Active Print Width 71.54mm
Nozzles 508
Physical resolution 180 dpi
Firing Frequency 14 kHz (and multiples)
Drop Velocity 5m/s
Drop Volume 12pl
Ink Compatibility UV, Oil and Solvent Inks
