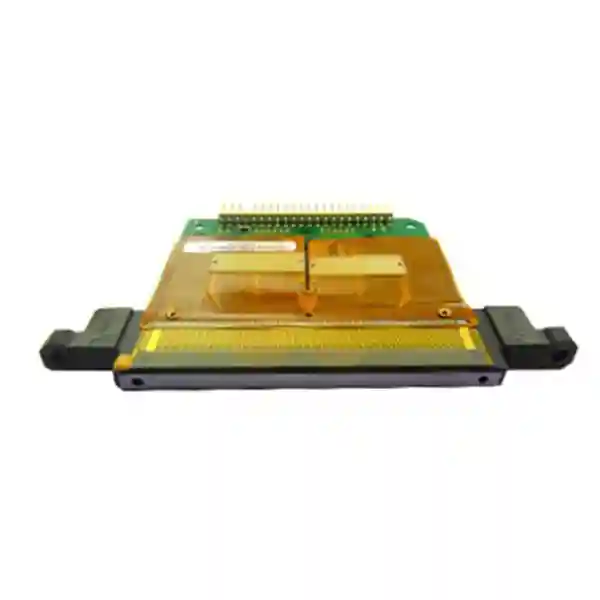

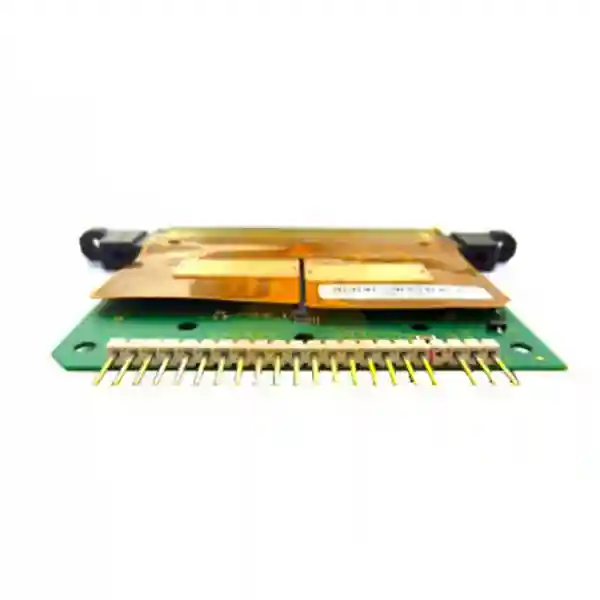

Spectra Sapphire QS-256 _ 10PL Printhead

# Spectra Sapphire QS-256 _ 10PL Printhead

Spectra Sapphire QS-256 / 10PLPrinthead
To be used with:
Spectra Sapphire QS-256
Durst Rho P10 160 / Rho 1012 / Rho 500R / Rho 750 HS / Rho 750 Presto / Rho P10 200 / Rho P10 250 / Rho P10 320R
Fujifilm DMP-3000 / DMP-5000
Inktec Jetrix 2513FRQ / Jetrix 3015FQ / Jetrix 2513FQ
Polytype VIRTU Quantum 25 / VIRTU Quantum 35
WP Digital RS25 / RS35

Remarks:Original

Model PRH-SPE-015
Technology VersaDrop™ jetting
Print Width 64.77mm (2.55″)
Nominal Drop Size 10 picoliter
Adj. Range for Droplet Size 10 to 30 picoliter
Tot. Amount of Nozzles 256
Nozzle Spacing 254 microns
Firing Frequency 50 kHz (16 kHz for 30 picoliter droplets)
Operating Temperature up to 90°C
Ink Compatibility UV curable, Organic solvents, and aqueous inks
